600BPH SUS 5 Gallon Water Filling Machine 7.5KW Auto Decapper

Name: 600BPH SUS 5 Gallon Water Filling Machine 75KW Auto Decapper
Brand: Aquatrin
Price: 2000 USD

Buy cheap 600BPH SUS 5 Gallon Water Filling Machine 7.5KW Auto Decapper product

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD2000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Filling range : 3-5 Gallon

Usage : Beverage Filling Packaging

Processing Types : Automatic Bottle Filling Sealing Machine

Material : Stainless Steel 304/316

Filling Accuracy : 99%

Product name : Promotional Top Quality 5 Gallon Bottling Water Filling Machine

Contact Now

5 Gallon Water Filling Machine

Main technical specifications:

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900
Filling heads	1	2	3	5	6
Volume(L)	18.9	18.9	18.9	18.9	18.9
Capacity(b/h)	100	300	450	600	900
Gas consumption (m3/min)	0.37	0.6	0.8	1	1.5
Moto power (kw)	1.38	3.8	5.6	7.5	9.75
Weight(kg)	680	1500	2100	3000	3500
Size(WLH)(m)	0.54.01.5	0.94.01.5	1.34.01.5	1.84.01.5	2.44.01.5

Full line description

Auto Decapper

It is compatible with a wide range of bottle height and cap diameter.Decapping head material: manganese steel

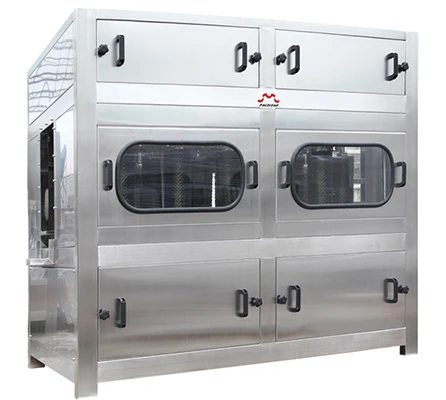

Automatic barrel outer brushing machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing.

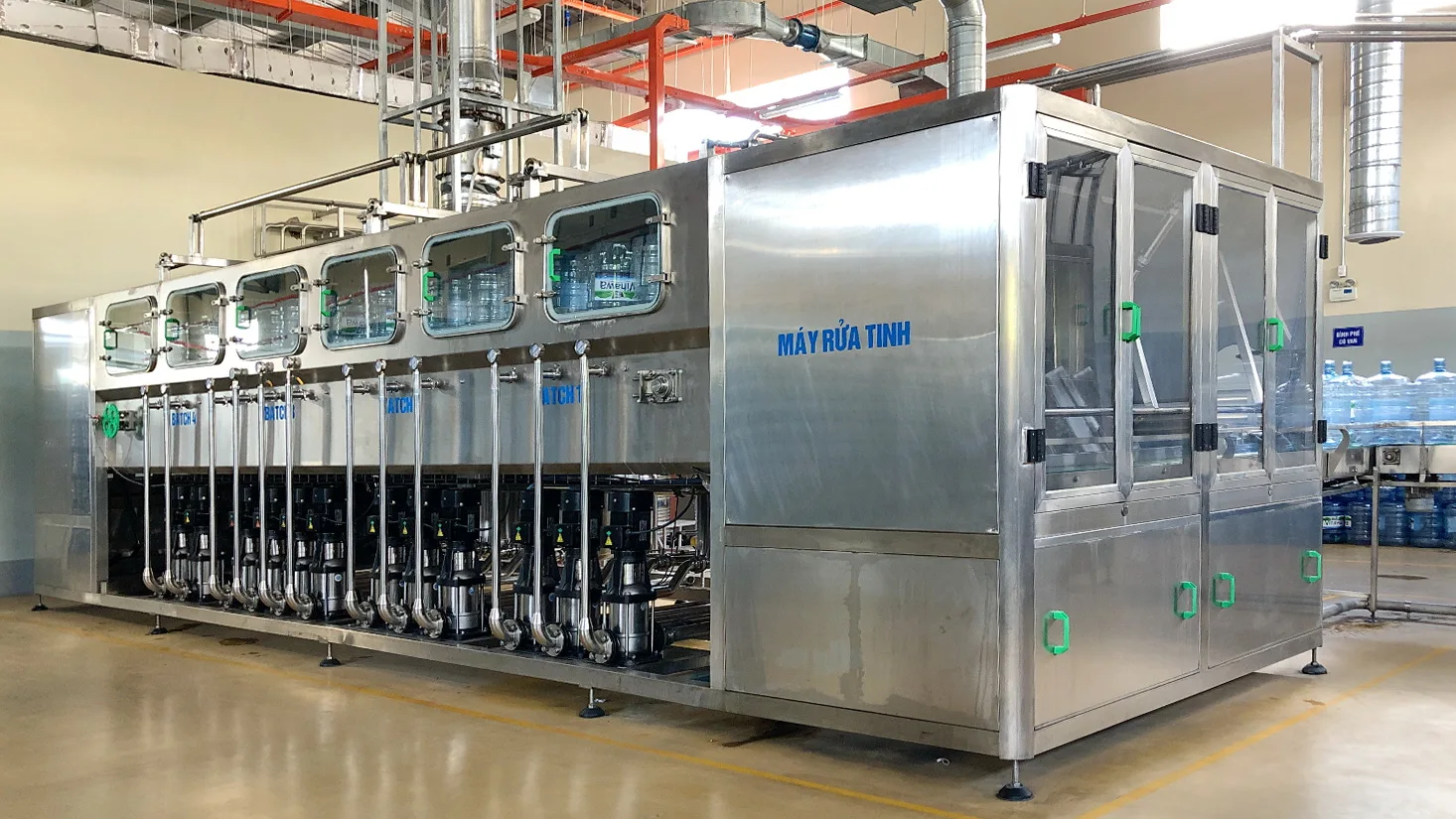

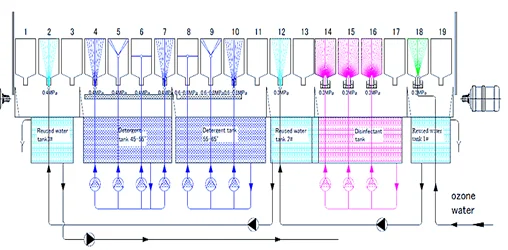

Inside sterilizer

By using the linear type rinsing nozzle to remove most of the particle and solid material which attach on the bottle inside wall.

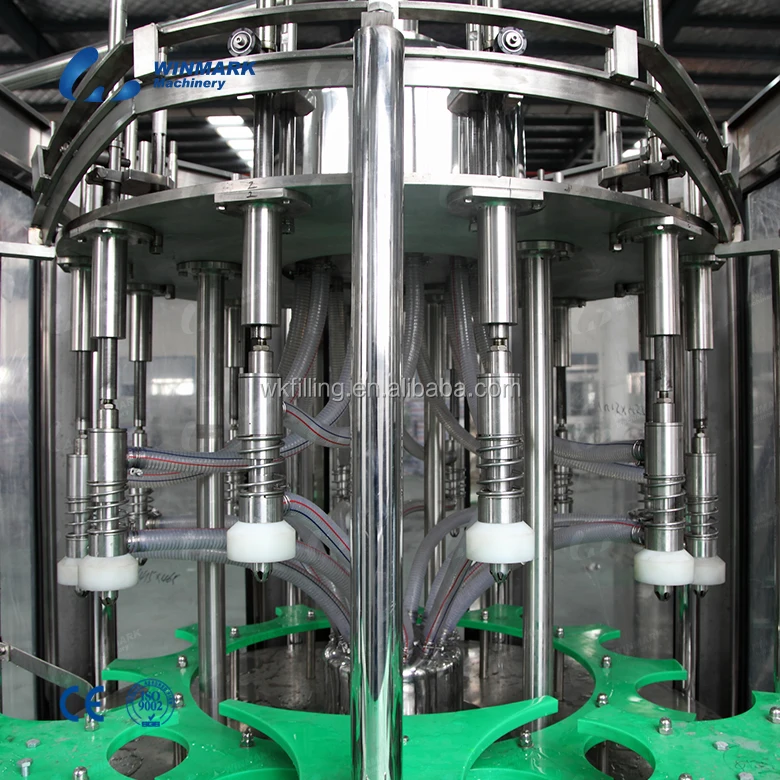

Filling part

Two kinds of non-touch filler are used according to different capacity. The single row type is used to small capacity from 300PH
 to 900BPH whle the mult-rows type is used to big capacity from1200BPH to 3000BPH.

 The non-touch fller has such advantage as high flow, low pressure, no splash, high accuracy(50m)and high speed. It can absolutely take the role of quantitative flling nozzle

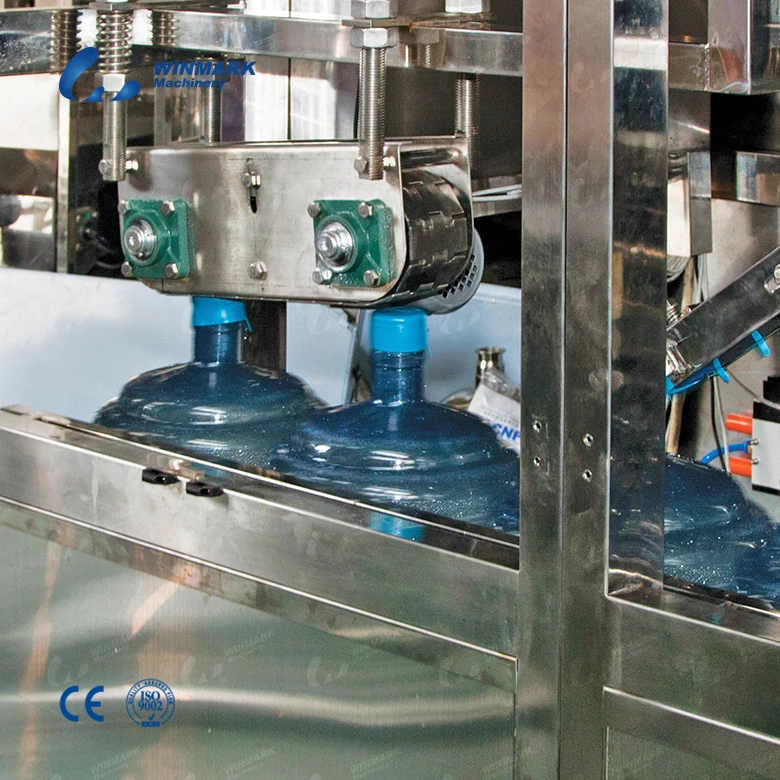

Capping part

The capper is the device which automatically presses the cap to tight after filling process, there are two types: hammer type and belt type. Belt type capping has good continuity and strong sealing, the capper is highly compatible with various heights of bottles

Neck shrink label machine

Auto bag machine

Sleeve the bag on the bottle to protect the barrel

Pallitizer

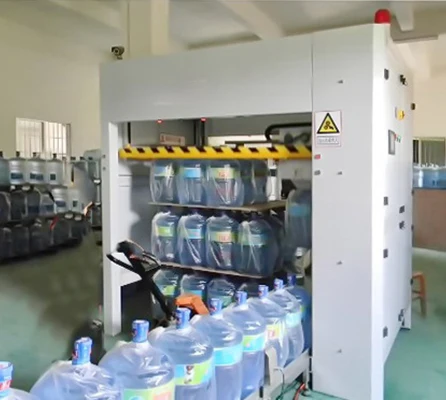

Robot Pallitizer

Robotic palletizer puts the bottle on pallet vertically, or put the bottle into shelf horizontally. The system is compatible with
 different shelves (with same space between bottles) by self-adaptive learning, full automatic, reliable, high speed and accurate.
 It is also equipped with control box and teaching program, which enhance s the universality and controllability.
