CIP Cleaning 1500B/H Fruit Juice Processing Machine Mitshbishi PLC Juice Packing Machine

Name: CIP Cleaning 1500BH Fruit Juice Processing Machine Mitshbishi PLC Juice Packing Machine
Brand: Aquatrin
Price: 12000 USD

Buy cheap CIP Cleaning 1500B/H Fruit Juice Processing Machine Mitshbishi PLC Juice Packing Machine product

Brand Name : Aquatrin

Model Number : RCGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Filling Material : Beer, Milk, Water, Juice

Product name : fruit juice making machine

Condition : New

Usage : Beverage Packaging

Automatic grade : Automatic

Application : Beverage

Contact Now

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml-2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

Washing Heads.
* Adopting the direct connection technology between the air duct and the bottle feeding wheel, the bottle feeding screw and conveyor chain are eliminated, and the bottle shape is simple and easy to change. * Bottle transmission adopts the bottleneck clamping technology throughout the whole process. Changing the bottle shape does not need to adjust the height of the equipment. It only needs to replace the arc guide plate, dial wheel and other nylon parts related to the bottle diameter. * The high-speed line adopts bottle clamp transmission technology, the bottle shape changes more freely, and the internal working surface of the unit is more concise.
Filling Heads.
* The three-in-one unit completes the three processes of bottle washing, filling and capping at one time, with little bottle wear, accurate and stable transmission, and convenient bottle type replacement. * The specially designed all-stainless steel bottle washer bottle clamp is sturdy and durable, and does not touch the threaded part of the bottle mouth to avoid secondary pollution of the bottle mouth. * High-speed and large-flow gravity filling valve, fast filling speed, accurate liquid level without liquid loss.
Capping Heads.
* All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which meet the national food hygiene standards. * The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle conveyor chain is not required to change the bottle shape.

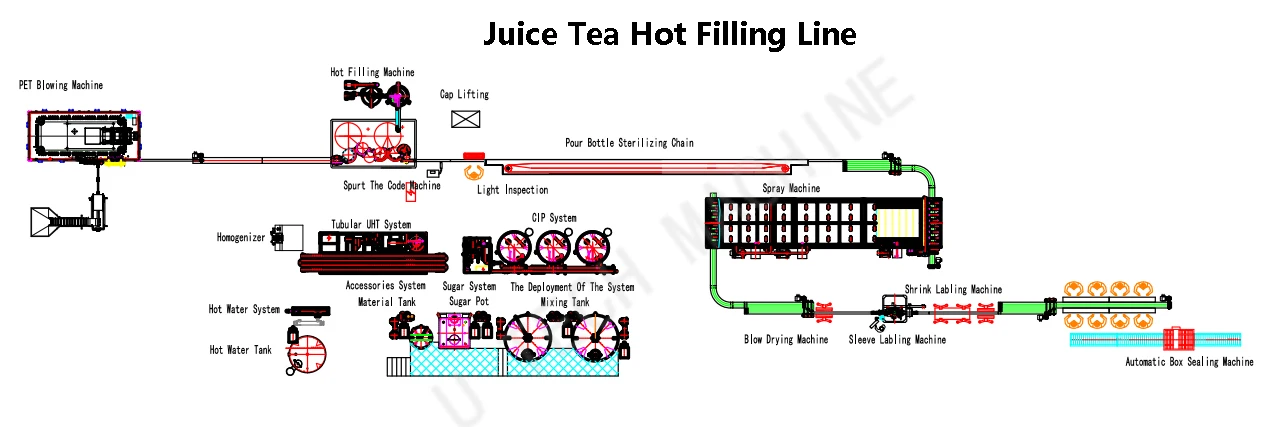

  Beverage pre-treatment system:
<1> The beverage processing system applies to beverage processing for hot filling line and CSD filling line.
 <2> product's scope hot water system, sugar dissolving system ( simple syrup system ), concentrate system, blending system (final syrup system), CIP system, extraction system, kind of storage tank / valves / pipe / fittings, UHT system (plate / tubular type), and carbo-cooler / mixer (manual / automatic)
 Tube UHT Sterilizer.
The tube(pipe) sterilize machine can take hot process on the liquid foods and beverage.
 Bottle Inverse Sterilizer Machine.
It is mainly used in sterilizing PET bottle mouth and inside surface of caps. in which haven't been disinfected by themal tea,fruit juice which having been filed in PET bottle.
 CIP Cleaning system
CIP plays role of rinsing syrup melting system, extracting and dispensing system for juice, homogenizer, and air exhauster. UHT sterilization system is attached with the CIP.
