2.2KW 48000BPH Automatic Water Bottle Filling Machine 1.2 Ton /H

Product Categories

Automatic Water Bottle Filling Machine [345]
5 Gallon Water Filling Machine [152]
Glass Bottle Filling Machine [31]
Juice Filling Machine [74]
Carbonated Drink Filling Machine [66]
Aluminum Can Filling Machine [26]
Blowing Mould Machine [22]
Reverse Osmosis Water Filtration System [22]
Shrink Sleeve Label Machine [18]
Bottle Sticker Labeling Machine [19]
OPP Labeling Machine [10]
Carton Box Packing Machine [12]
Shrink Film Wrapping Machine [13]
Date Code Printing Machine [13]

zhangjiagang aquatrin Machinery co.,ltd

Contact Now

2.2KW 48000BPH Automatic Water Bottle Filling Machine 1.2 Ton /H

Name: 22KW 48000BPH Automatic Water Bottle Filling Machine 12 Ton H
Brand: Aquatrin
Price: 15000 USD

Buy cheap 2.2KW 48000BPH Automatic Water Bottle Filling Machine 1.2 Ton /H product

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Bottle type : PET Bottles

Function : Bottle Washing Filling Capping

Filling speed : 3000---48000BPH

Warranty : 1 Year, Maintenance

Name : Water Bottle Filling Machine

Power : 2.2KW

Contact Now

Complete small bottled pure mineral water processing bottling filling machine for sale

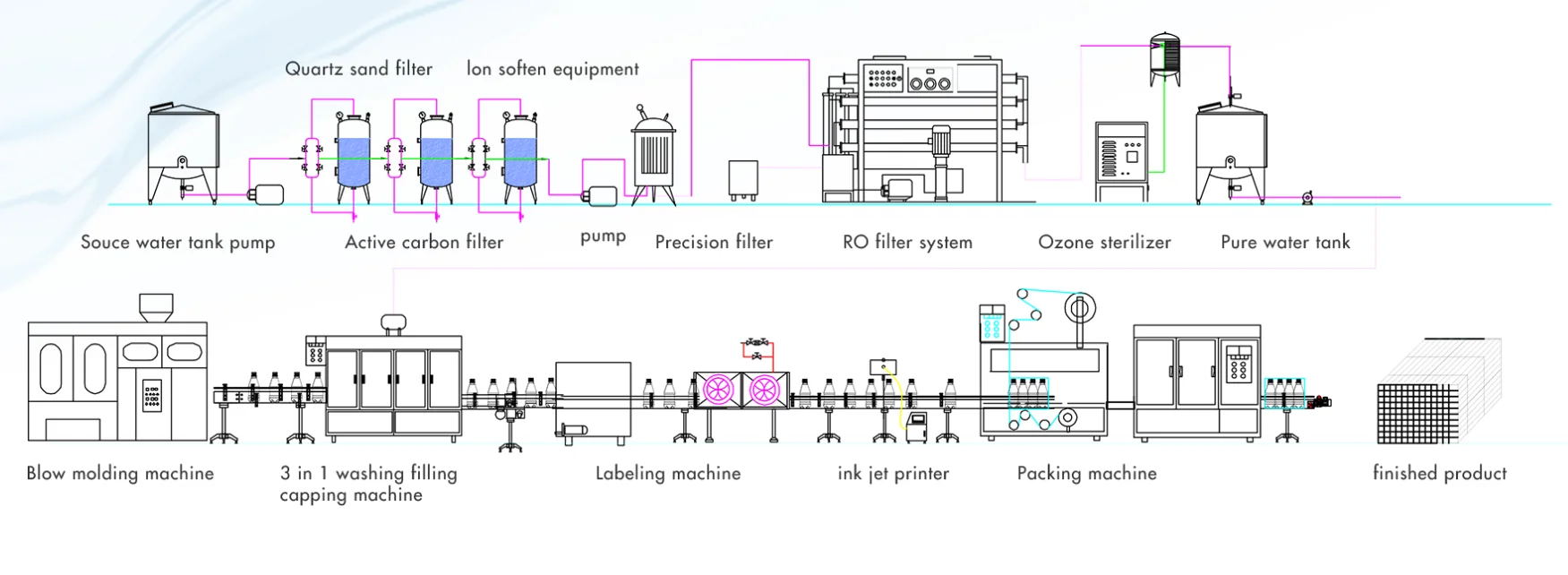

Water is source of the life. Water includes natural spring water and purified water. How can you get the drinking water? How can you make bottles? How can you package and design your products? We can supply complete solution for water filling plant ,including the blow moulding machine, water treatment system, washing filling capping machine, code sprayer, automatic labeling machine, automatic packing machine, automatic palletizer system. Baiji Machinery, professional in liquid filling and packaging, will always provide you the best solutions for your projects.

2.2KW 48000BPH Automatic Water Bottle Filling Machine 1.2 Ton /H

Conveyor

Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine

304 stainless steel washing pumps

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

Filler

High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling

capper station

Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle

Machine Parameter

Model	CGF 14-12-5	CGF 18-18-6	CGF 24-24-8	CGF 32-32-8
Station Number	Washing 14	Washing 18	Washing 24	Washing 32
	Filling 12	Filling 18	Filling 24	Filling 32
	Capping 5	Capping 6	Capping 8	Capping 8
Production Capacity	5000BPH(500ml)	8000BPH(500ml)	12000BPH(500ml)	15000BPH(500ml)
Way Of Filling	Gravity Filling
Bottle Size	Diameterφ50－φ105,Height165－320
Pressure	0.7Mpa
Air Consumption	0.8M3/ min
Pressure Of Washing	0.2-0.25Mpa
Washing Water	1.0Ton/hour	1.2Ton/hour	1.5Ton/hour	2.0Ton/hour
Total Power	1.5KW	2.2KW	2.2KW	3.0KW
Dimensions(MM)	225016502650	285021502750	288021802750	338025802750
Machine Weight	3500KG	3500KG	3500KG	3500KG
